895Radiator
2 Row All Metal

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Copper-Brass Construction
  • Easy to recore & repair
  • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
  • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
  • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • Side Channels - Coated Steel for Strength & Durability
  • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
  • All components are installed, torqued & tested on Radiator during assembly

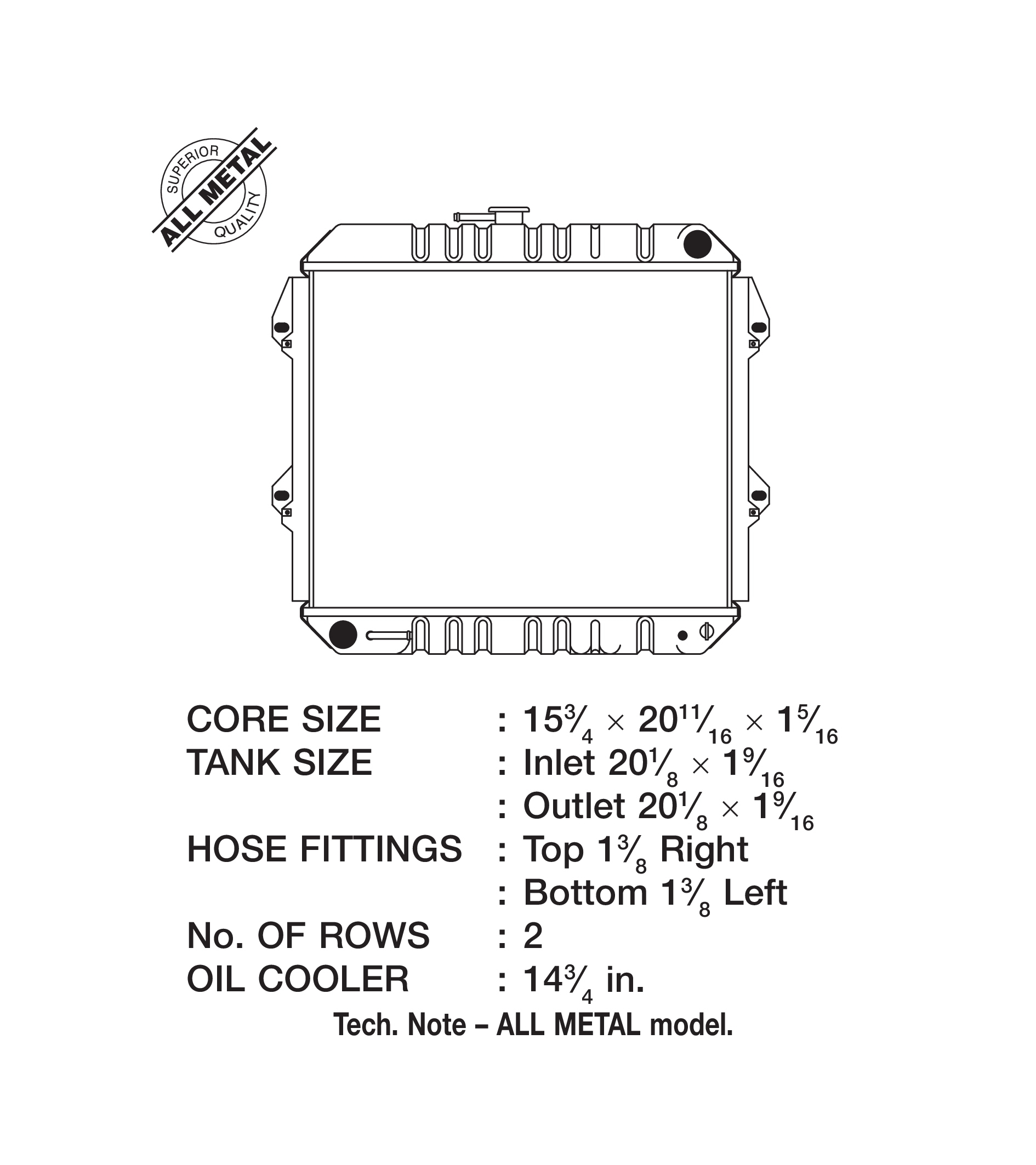

Bottom Hose Fitting (in): 1 3/8 Left (in)
Box Height (in): 5 1/16
Box Length (in): 22 9/16
Box Weight (lbs): 13
Box Width (in): 25 7/8
Core Length (in): 15 3/4 (in)
Core Material: Copper
Core Thickness (in): 1 1/8 (in)
Core Width (in): 20 13/16 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4502
Hazardous Material: No
Inlet Length (in): 20 7/8
Inlet Width (in): 1 9/16
No. Of Rows: 2
Oil Cooler (in): 14 3/4 (high-effeciency Concentric Type)
Outlet Length (in): 20 7/8
Outlet Width (in): 1 9/16
Radiator Cap Supplied: No
Tank Material: Brass
Tech Note: ALL METAL model.
Top Hose Fitting (in): 1 3/8 Right (in)
Make Model Qualifiers Year
Toyota 4Runner
  • Position: N/A
  • 2.4L L4 2366cc
  • Naturally Aspirated
  • GAS
  • 4WD
  • Manual
 1988
Toyota 4Runner
  • Position: N/A
  • 2.4L L4 2366cc
  • GAS
  • RWD
 1992-1995
Toyota Pickup
  • Position: N/A
  • 2.4L L4 2366cc
  • Naturally Aspirated
  • GAS
  • 4WD
  • Manual
 1988-1991
Toyota Pickup
  • Position: N/A
  • 2.4L L4 2366cc
  • GAS
  • RWD
 1990-1995
Toyota Pickup
  • Position: N/A
  • 2.4L L4 2366cc
  • GAS
  • 4WD
  • Manual
 1992-1995
Toyota Pickup
  • Position: N/A
  • 2.4L L4 2366cc
  • Naturally Aspirated
  • GAS
  • 4WD
 1986-1987

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
16400-35350OEM
16400-35360OEM
8010945APDI
945TYC
945DPI
CU945SPI
TO3010148Partslink
TO3010149Partslink
