6066Intercooler

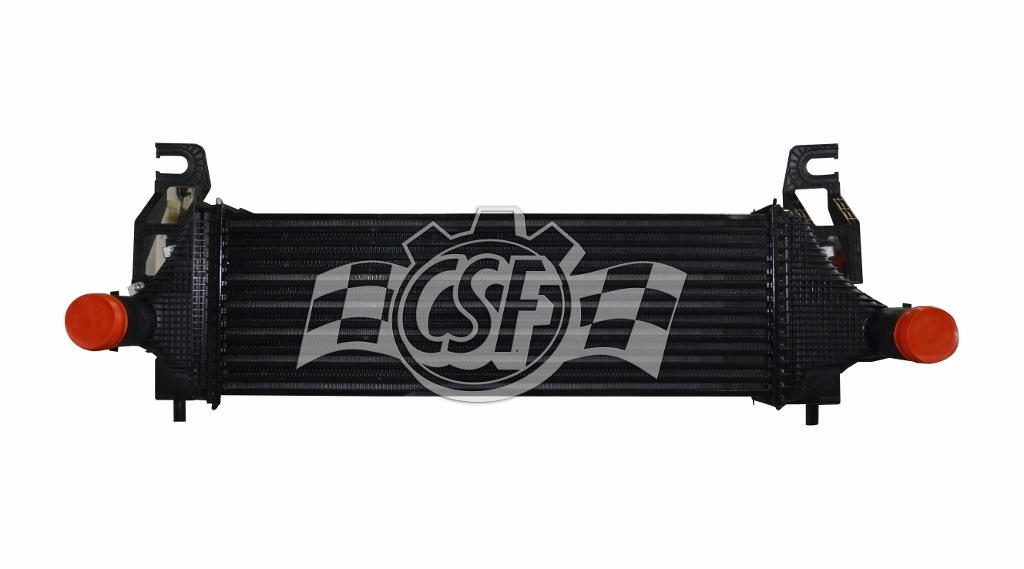

Intercooler

CSF provides the best Intercooler coverage in the Industry!
Designed & engineered for Superior Performance & Drop-in fit
Box Height (in): 12
Box Length (in): 18
Box Weight (lbs): 18
Box Width (in): 41

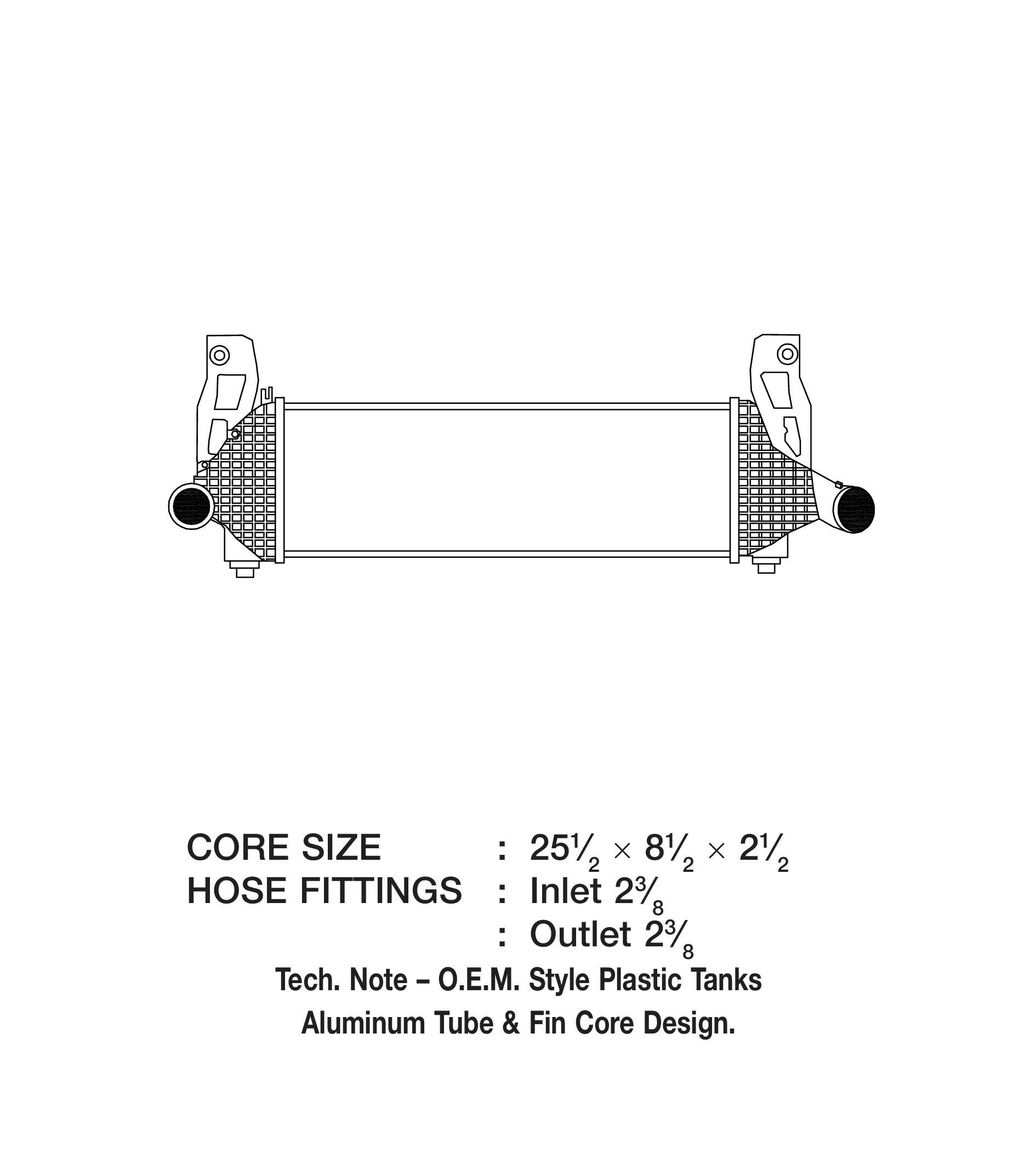

Core Length (in): 25 1/2 (in)
Core Material: Aluminum
Core Thickness (in): 2 1/2 (in)
Core Width (in): 8 1/2 (in)
Hazardous Material: No
Inlet Tube (in): 2 3/8
Outlet Tube (in): 2 3/8
Tank Material: Plastic
Tech Note: O.E.M. Style Tube & Fin Core Design
Make Model Qualifiers Year
Ram 1500
  • Position: N/A
  • 3.0L V6 2987cc 182ci
  • Turbocharged
  • DIESEL
 2014-2018
Ram 1500 Classic
  • Position: N/A
  • 3.0L V6 2987cc 182ci
  • Turbocharged
  • DIESEL
 2019

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
52014947ABOEM
52014947ACOEM
CH3012103Partslink
