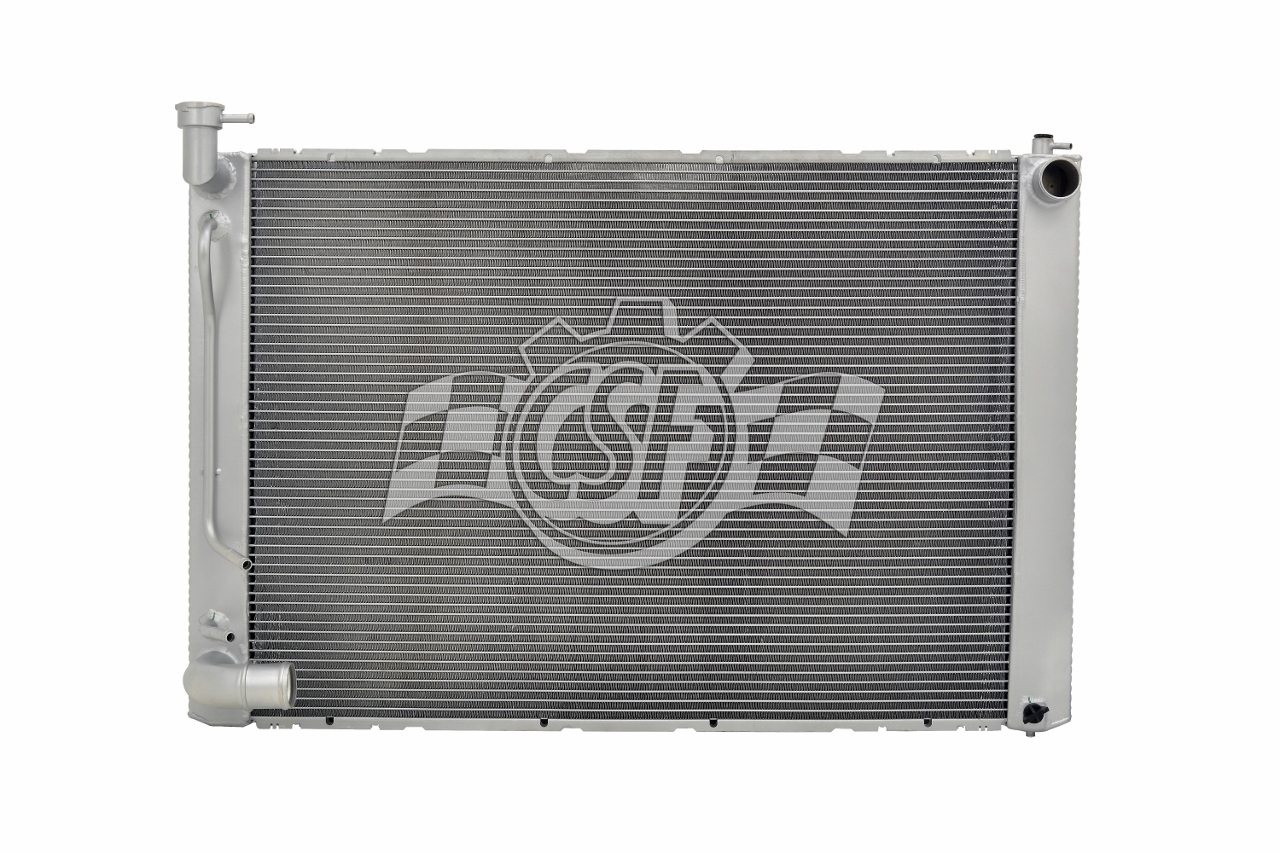

3711Radiator
1 Row All Aluminum

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • 100% OE style & OE specs for "Dop-in fit"
  • Pre-installed & tested drain plug
  • 100% Hydrostatic tested at 1.5 times operating pressure

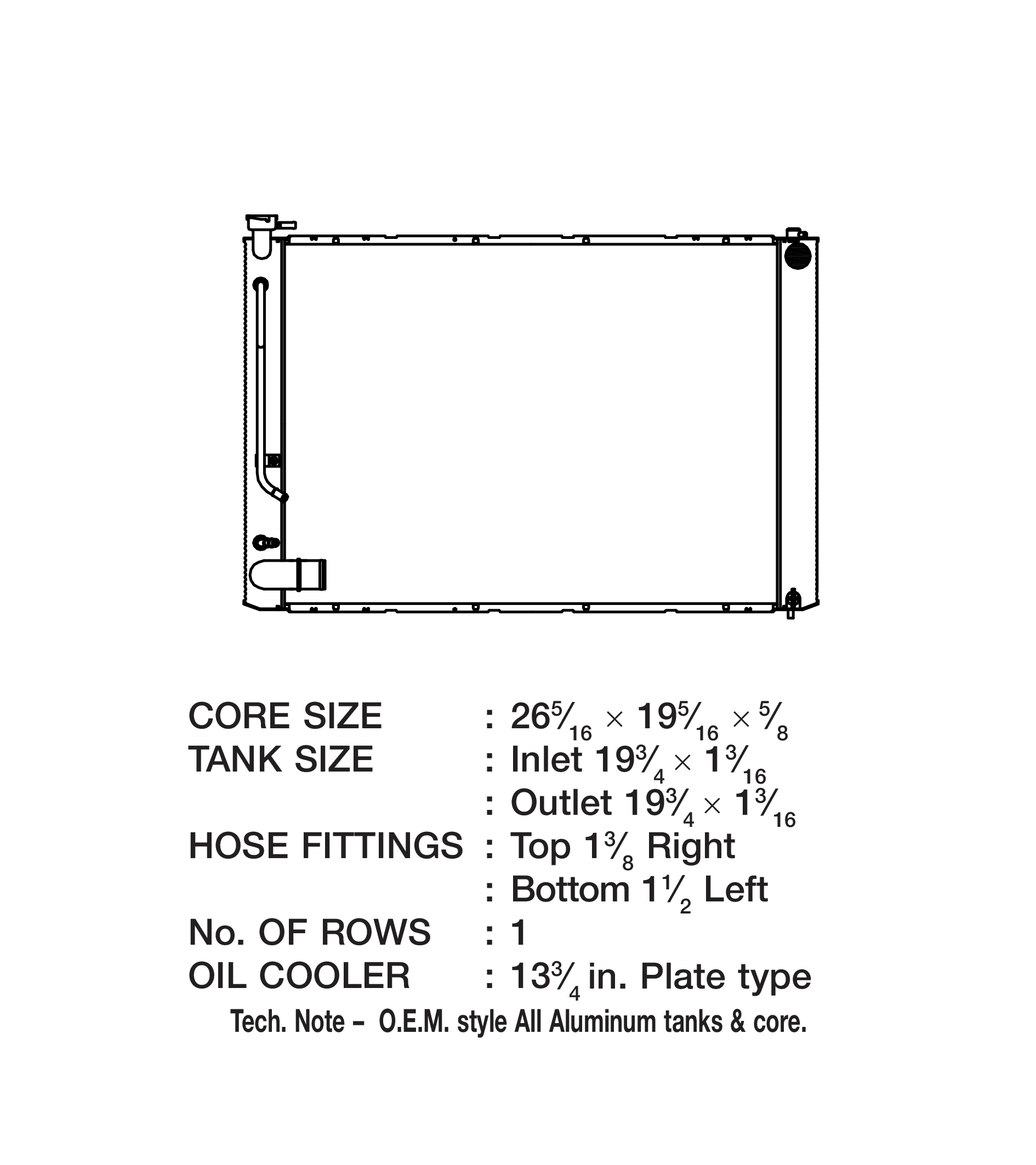

Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 6 7/16
Box Length (in): 32 7/16
Box Weight (lbs): 9
Box Width (in): 23 1/8
Core Length (in): 26 5/16 (in)
Core Material: Aluminum
Core Thickness (in): 5/8 (in)
Core Width (in): 19 5/16 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4513
Hazardous Material: No
Inlet Length (in): 19 3/4
Inlet Width (in): 1 3/16
No. Of Rows: 1
Oil Cooler (in): 13 3/4 (high-efficiency Plate Type)
Outlet Length (in): 19 3/4
Outlet Width (in): 1 3/16
Radiator Cap Supplied: No
Tank Material: Aluminum
Tech Note: O.E.M. style All Aluminum tanks & core model.
Top Hose Fitting (in): 1 3/8 Right (in)
Make Model Qualifiers Year
Lexus RX330
  • Position: N/A
  • 3.3L V6 3300cc 202ci
 2004-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
16041-20290OEM
16041-20291OEM
2688DPI
2688TYC
8012688APDI
CU2688SPI
LX3010136Partslink
