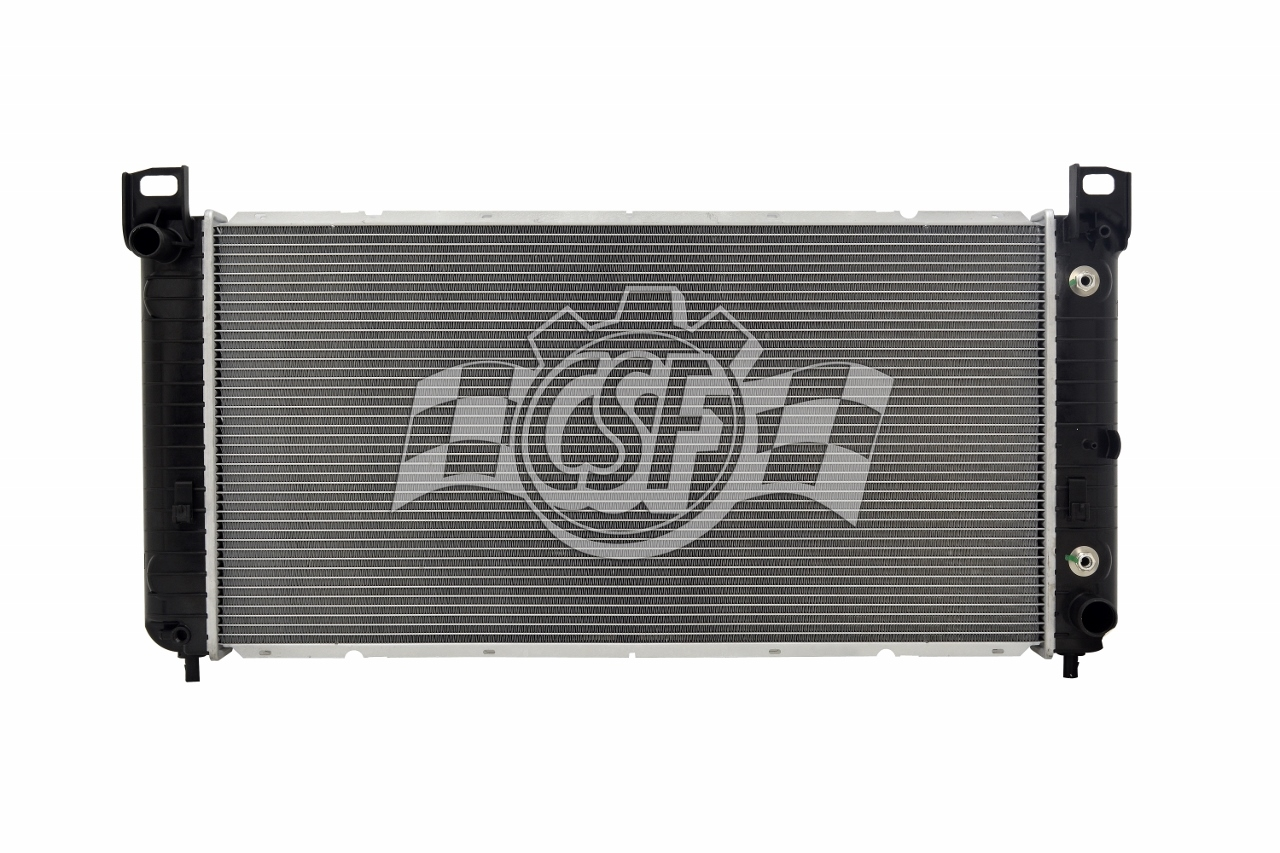

3653Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 9/16 Right
Box Height (in): 7 1/16
Box Length (in): 41 7/8
Box Weight (lbs): 17
Box Width (in): 23 9/16
Core Length (in): 34
Core Material: Aluminum
Core Thickness (in): 1 1/4
Core Width (in): 17 1/4
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 18 1/16
Inlet Width (in): 2 3/4
No. Of Rows: 1
Oil Cooler (in): 11 1/2 (high-efficiency Plate Type)
Outlet Length (in): 18 1/16
Outlet Width (in): 2 3/4
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings.
Top Hose Fitting (in): 1 5/16 Left
Make Model Qualifiers Year
Cadillac Escalade
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2007-2008
Cadillac Escalade
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2002-2005
Cadillac Escalade
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2002-2006
Cadillac Escalade ESV
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2007-2008
Cadillac Escalade EXT
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2005-2006
Cadillac Escalade EXT
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2007-2013
Chevrolet Avalanche
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2007-2013
Chevrolet Avalanche
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007-2009
Chevrolet Avalanche 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2002-2006
Chevrolet Silverado 1500
  • Position: N/A
  • Canada
  • 4.3L V6 262ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 4.3L V6 262ci
2005-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 4.3L V6 4300cc 262ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 4.8L V8 294ci
2007-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2007-2013
Chevrolet Silverado 1500
  • Position: N/A
  • Canada
  • 6.2L V8 6162cc 376ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2005-2007
Chevrolet Silverado 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
Chevrolet Silverado 1500
  • Position: N/A
  • Base
  • 5.3L V8 5328cc 325ci
2005, 2007
Chevrolet Silverado 1500
  • Position: N/A
  • WT
  • 5.3L V8 5328cc 325ci
2006-2007
Chevrolet Silverado 1500
  • Position: N/A
  • LT
  • 5.3L V8 5328cc 325ci
2005-2007
Chevrolet Silverado 1500
  • Position: N/A
  • LS
  • 5.3L V8 5328cc 325ci
2005-2006
Chevrolet Silverado 1500
  • Position: N/A
  • 4.8L V8 294ci
  • Automatic
2005-2007
Chevrolet Silverado 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2003-2006
Chevrolet Silverado 1500
  • Position: N/A
  • LS
  • 5.3L V8 5328cc 325ci
  • FLEX
2004
Chevrolet Silverado 1500
  • Position: N/A
  • Canada
  • 4.8L V8 294ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • Canada
  • 6.0L V8 5967cc 364ci
2011-2013
Chevrolet Silverado 1500
  • Position: N/A
  • Canada
  • 5.3L V8 5328cc 325ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • United States
  • 4.8L V8 294ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • United States
  • 5.3L V8 5328cc 325ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • United States
  • 6.0L V8 5967cc 364ci
2011-2013
Chevrolet Silverado 1500
  • Position: N/A
  • United States
  • 4.3L V6 262ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • United States
  • 6.2L V8 6162cc 376ci
2010-2013
Chevrolet Silverado 1500
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2009-2013
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • WT
  • 5.3L V8 5328cc 325ci
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • LT
  • 5.3L V8 5328cc 325ci
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • LS
  • 5.3L V8 5328cc 325ci
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • 4.8L V8 294ci
  • Automatic
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
Chevrolet Silverado 1500 Classic
  • Position: N/A
  • 4.3L V6 262ci
2007
Chevrolet Silverado 1500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
Chevrolet Silverado 1500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2003, 2005-2006
Chevrolet Silverado 1500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
Chevrolet Silverado 1500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
Chevrolet Silverado 2500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2005-2007
Chevrolet Silverado 2500
  • Position: N/A
  • Base
  • 5.3L V8 5328cc 325ci
2005-2007
Chevrolet Silverado 2500
  • Position: N/A
  • 4.8L V8 294ci
  • Automatic
2006-2007
Chevrolet Silverado 2500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
1999-2004
Chevrolet Silverado 2500
  • Position: N/A
  • 4.8L V8 294ci
2007-2013
Chevrolet Silverado 2500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2007-2013
Chevrolet Silverado 2500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2007
Chevrolet Silverado 2500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2007
Chevrolet Silverado 2500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
Chevrolet Silverado 2500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
Chevrolet Silverado 3500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
Chevrolet Silverado 3500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2006
Chevrolet Silverado 3500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
Chevrolet Silverado 3500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
Chevrolet Silverado 3500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
Chevrolet Silverado 3500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
Chevrolet Suburban
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2014
Chevrolet Suburban 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2000-2006, 2010-2014
Chevrolet Suburban 2500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2000
Chevrolet Tahoe
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2008-2009
Chevrolet Tahoe
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2000-2006, 2010-2014
Chevrolet Tahoe
  • Position: N/A
  • 4.8L V8 294ci
2000-2006
Chevrolet Tahoe
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2010-2013
GMC Sierra
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2007
GMC Sierra
  • Position: N/A
  • Base
  • 5.3L V8 5328cc 325ci
2007
GMC Sierra
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2009-2013
GMC Sierra
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2007-2013
GMC Sierra 1500
  • Position: N/A
  • 4.3L V6 262ci
2005-2013
GMC Sierra 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2006
GMC Sierra 1500
  • Position: N/A
  • 4.8L V8 294ci
2007-2013
GMC Sierra 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2007-2013
GMC Sierra 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2005-2007
GMC Sierra 1500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
GMC Sierra 1500
  • Position: N/A
  • WT
  • 5.3L V8 5328cc 325ci
2005-2007
GMC Sierra 1500
  • Position: N/A
  • SLT
  • 5.3L V8 5328cc 325ci
2005-2007
GMC Sierra 1500
  • Position: N/A
  • SLE
  • 5.3L V8 5328cc 325ci
2005-2007
GMC Sierra 1500
  • Position: N/A
  • SL
  • 5.3L V8 5328cc 325ci
2006
GMC Sierra 1500
  • Position: N/A
  • Base
  • 5.3L V8 5328cc 325ci
2005
GMC Sierra 1500
  • Position: N/A
  • 4.8L V8 294ci
  • Automatic
2005-2007
GMC Sierra 1500
  • Position: N/A
  • SLE
  • 5.3L V8 5328cc 325ci
  • FLEX
2004
GMC Sierra 1500
  • Position: N/A
  • Canada
  • 6.2L V8 6162cc 376ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • Canada
  • 5.3L V8 5328cc 325ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • Canada
  • 4.3L V6 262ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2009-2013
GMC Sierra 1500
  • Position: N/A
  • Canada
  • 4.8L V8 294ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • Canada
  • 6.0L V8 5967cc 364ci
2011-2013
GMC Sierra 1500
  • Position: N/A
  • United States
  • 4.8L V8 294ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • United States
  • 5.3L V8 5328cc 325ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • United States
  • 6.0L V8 5967cc 364ci
2011-2013
GMC Sierra 1500
  • Position: N/A
  • United States
  • 4.3L V6 262ci
2010-2013
GMC Sierra 1500
  • Position: N/A
  • United States
  • 6.2L V8 6162cc 376ci
2010-2013
GMC Sierra 1500 Classic
  • Position: N/A
  • 5.3L V8 5328cc 325ci
  • GAS
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • WT
  • 5.3L V8 5328cc 325ci
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • SLT
  • 5.3L V8 5328cc 325ci
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • SLE
  • 5.3L V8 5328cc 325ci
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • SL
  • 5.3L V8 5328cc 325ci
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • 4.8L V8 294ci
  • Automatic
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
GMC Sierra 1500 Classic
  • Position: N/A
  • 4.3L V6 262ci
2007
GMC Sierra 1500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
GMC Sierra 1500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2003, 2005-2006
GMC Sierra 1500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
GMC Sierra 1500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
GMC Sierra 2500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
1999-2004
GMC Sierra 2500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2007
GMC Sierra 2500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2007
GMC Sierra 2500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
GMC Sierra 2500 HD Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
GMC Sierra 3500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2005-2006
GMC Sierra 3500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2001-2006
GMC Sierra 3500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
GMC Sierra 3500 Classic
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
GMC Sierra 3500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
  • Automatic
2007
GMC Sierra 3500 HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2007
GMC Yukon
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2000-2006
GMC Yukon
  • Position: N/A
  • 4.8L V8 294ci
2000-2009
GMC Yukon
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2008-2013
GMC Yukon XL 1500
  • Position: N/A
  • 5.3L V8 5328cc 325ci
2000-2006, 2010-2014
GMC Yukon XL 2500
  • Position: N/A
  • 6.0L V8 5967cc 364ci
2000
Hummer H2
  • Position: N/A
  • 6.2L V8 376ci
2009
Hummer H2
  • Position: N/A
  • 6.2L V8 6162cc 376ci
2008-2009

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
15841572OEM
22840117OEM
2423DPI
2921DPI
2945DPI
2946DPI
CU2423SPI
CU2921SPI
GM3010275Partslink
GM3010475Partslink
GM3010519Partslink
