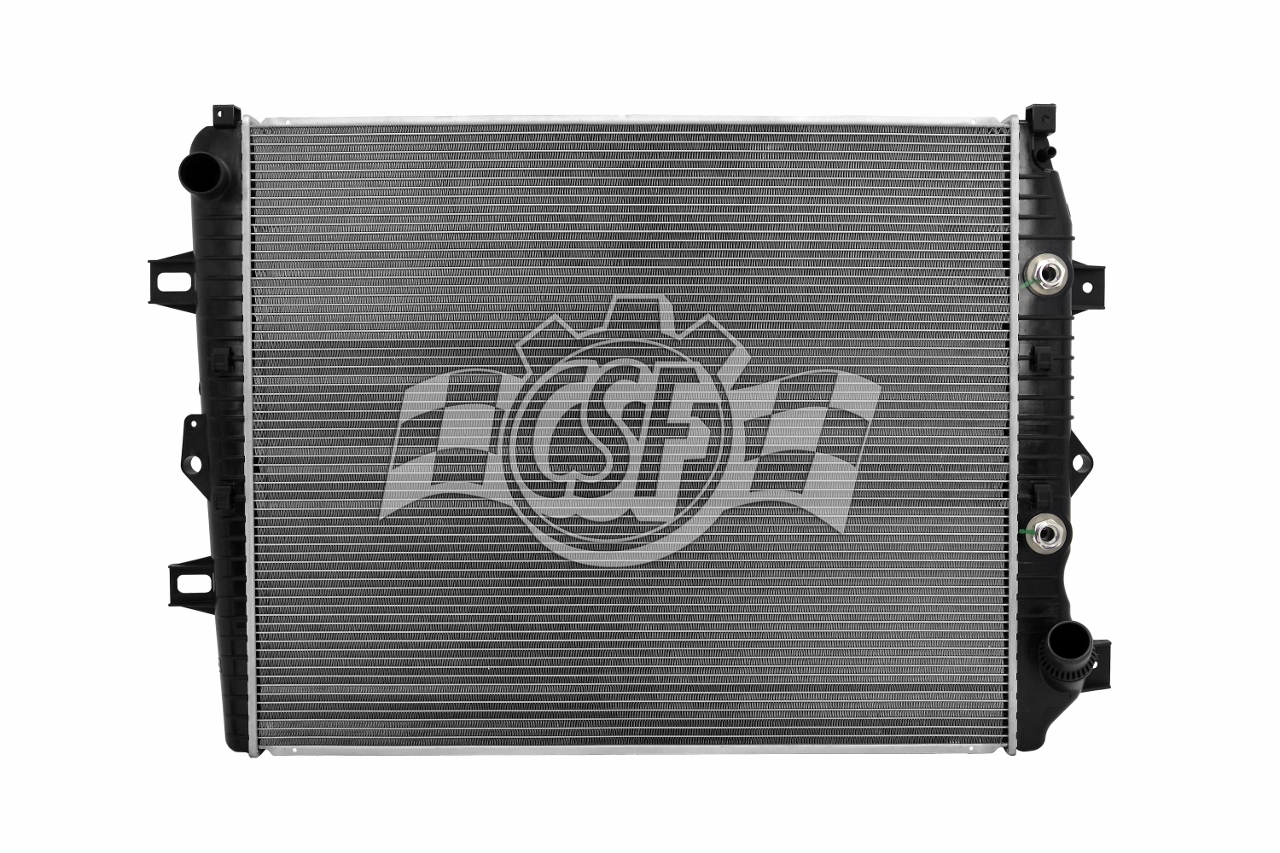

3584Radiator
2 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 2 Right
Box Height (in): 7 7/16
Box Length (in): 45 13/16
Box Weight (lbs): 29
Box Width (in): 31 5/8

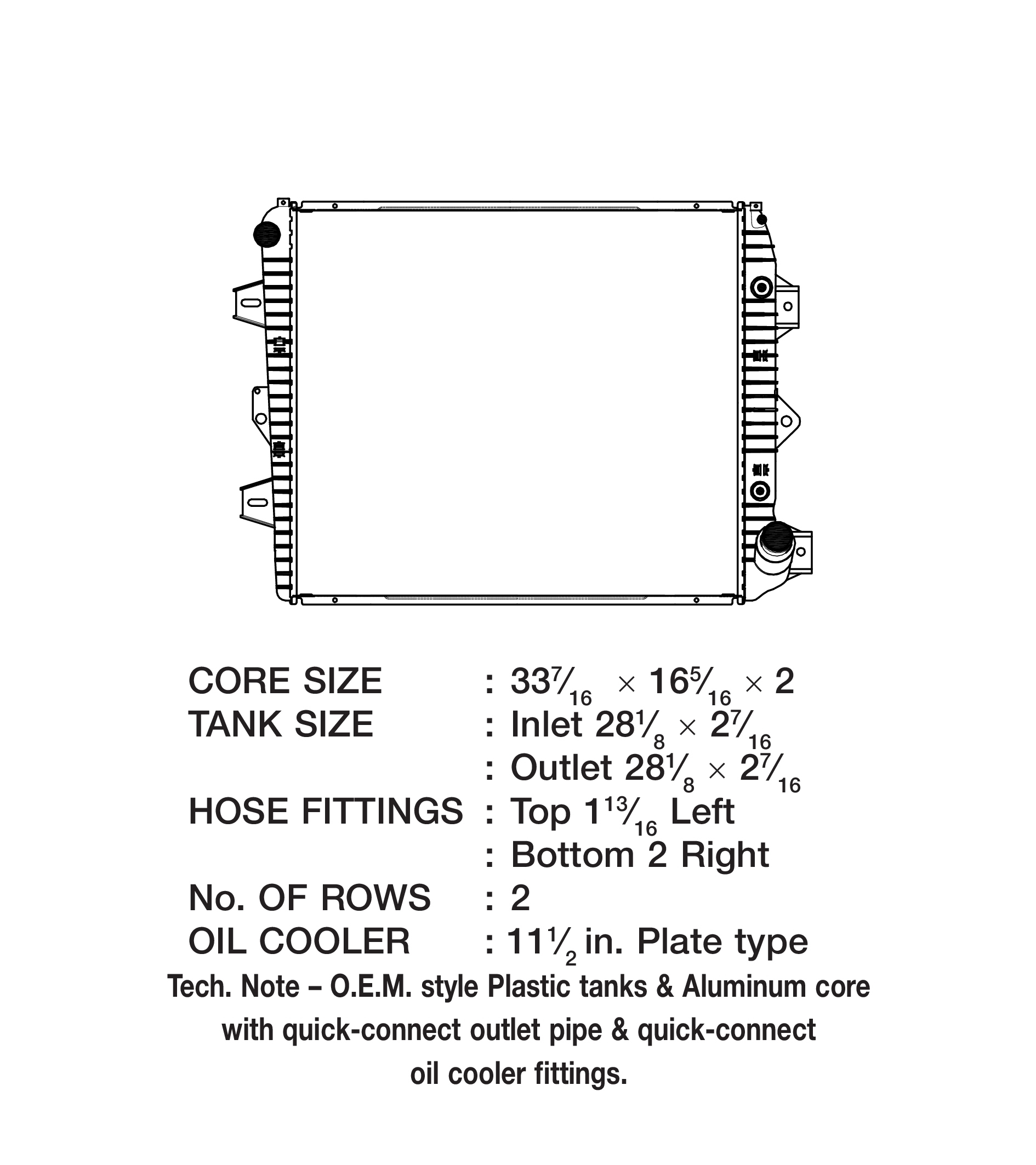

Core Length (in): 33 7/16
Core Material: Aluminum
Core Thickness (in): 2 1/16
Core Width (in): 27 1/2
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 28 1/8
Inlet Width (in): 2 7/16
No. Of Rows: 2
Oil Cooler (in): 11 1/2 (high-efficiency Plate Type)
Outlet Length (in): 28 1/8
Outlet Width (in): 2 7/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect outlet pipe & quick-connect oil cooler fittings.
Top Hose Fitting (in): 1 13/16 Left
Make Model Qualifiers Year
Chevrolet Silverado 2500 HD
  • Position: N/A
  • 6.6L V8 6599cc 403ci
  • Turbocharged
  • DIESEL
 2011-2016
Chevrolet Silverado 3500 HD
  • Position: N/A
  • 6.6L V8 6599cc 403ci
  • Turbocharged
  • DIESEL
 2011-2016
GMC Sierra 2500 HD
  • Position: N/A
  • 6.6L V8 6599cc 403ci
  • Turbocharged
  • DIESEL
 2011-2016
GMC Sierra 3500 HD
  • Position: N/A
  • 6.6L V8 6599cc 403ci
  • Turbocharged
  • DIESEL
 2011-2016

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
13244DPI
23172440OEM
25838892OEM
8013244APDI
CU13244SPI
GM3010576Partslink
