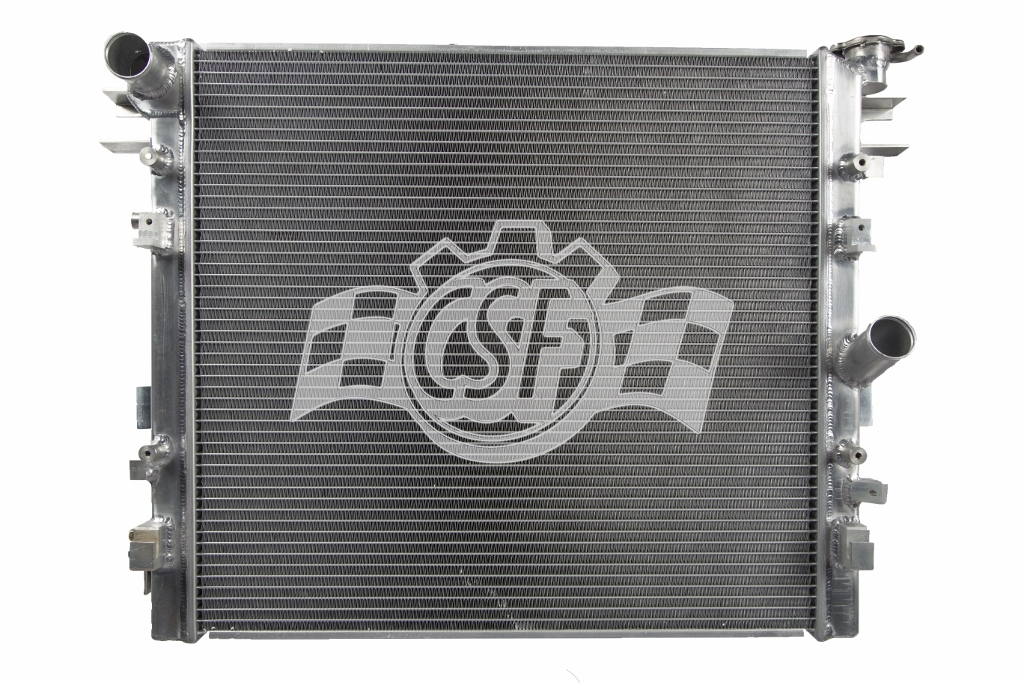

3466Radiator
2 Row All Aluminum Tank & Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • 100% OE style & OE specs for "Dop-in fit"
  • Pre-installed & tested drain plug
  • 100% Hydrostatic tested at 1.5 times operating pressure
Bottom Hose Fitting (in): 1 1/2 Right (in)
Box Height (in): 9 7/16
Box Length (in): 30 7/8
Box Weight (lbs): 17
Box Width (in): 24 1/8

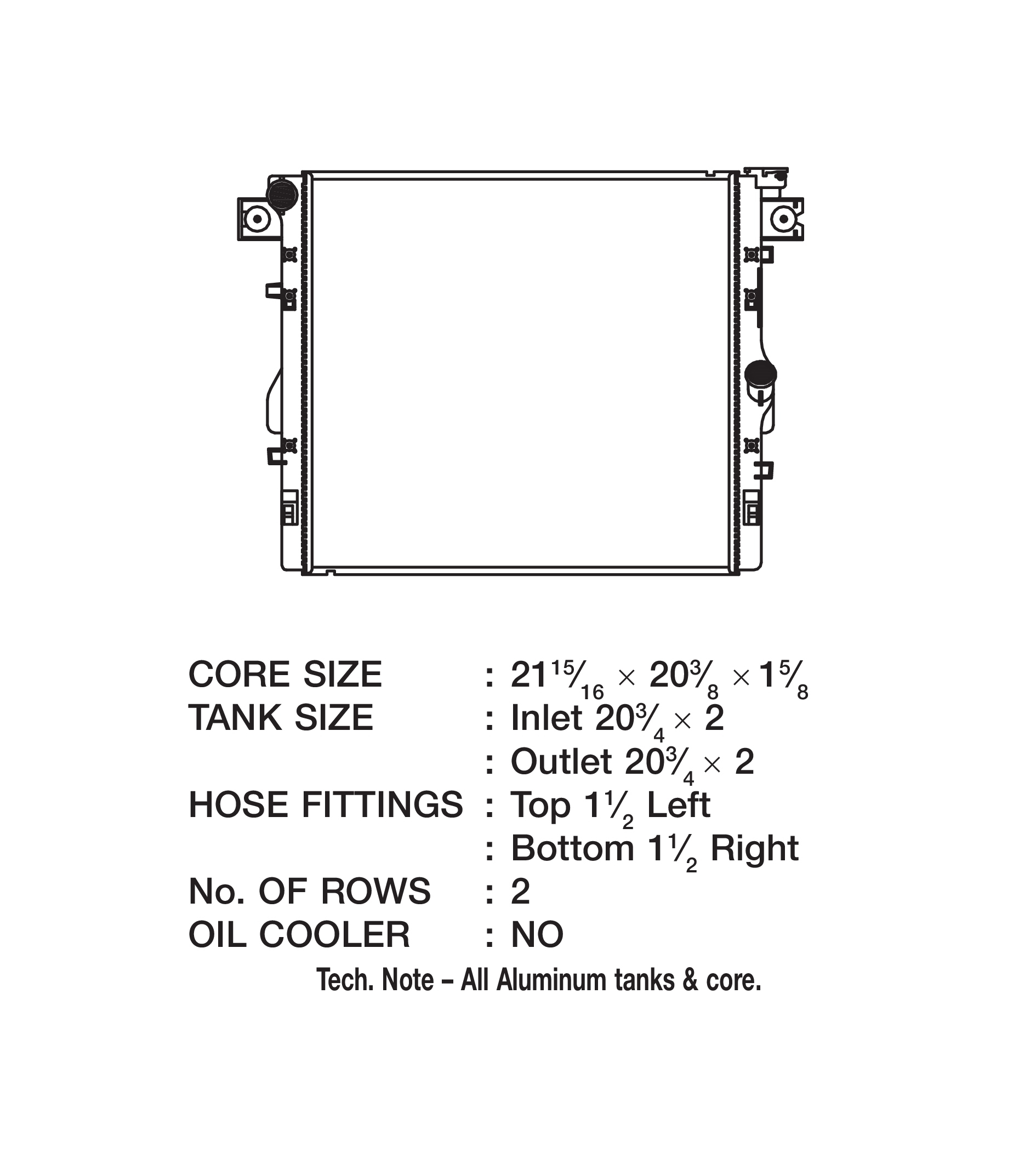

Core Length (in): 21 15/16 (in)
Core Material: Aluminum
Core Thickness (in): 1 5/8 (in)
Core Width (in): 20 3/8 (in)
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4539
Hazardous Material: No
Inlet Length (in): 21
Inlet Width (in): 2 1/16
No. Of Rows: 2
Outlet Length (in): 21
Outlet Width (in): 2 1/16
Radiator Cap Supplied: No
Tank Material: Aluminum
Tech Note: All Aluminum tanks & core. HD.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
Jeep Wrangler
  • Position: N/A
  • 3.8L V6 3778cc 231ci
2007-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
2957DPI
2957TYC
55056633 AB (HD)OEM
68143886 AA (HD)OEM
8012957APDI
CH3010343Partslink
CU2957SPI
