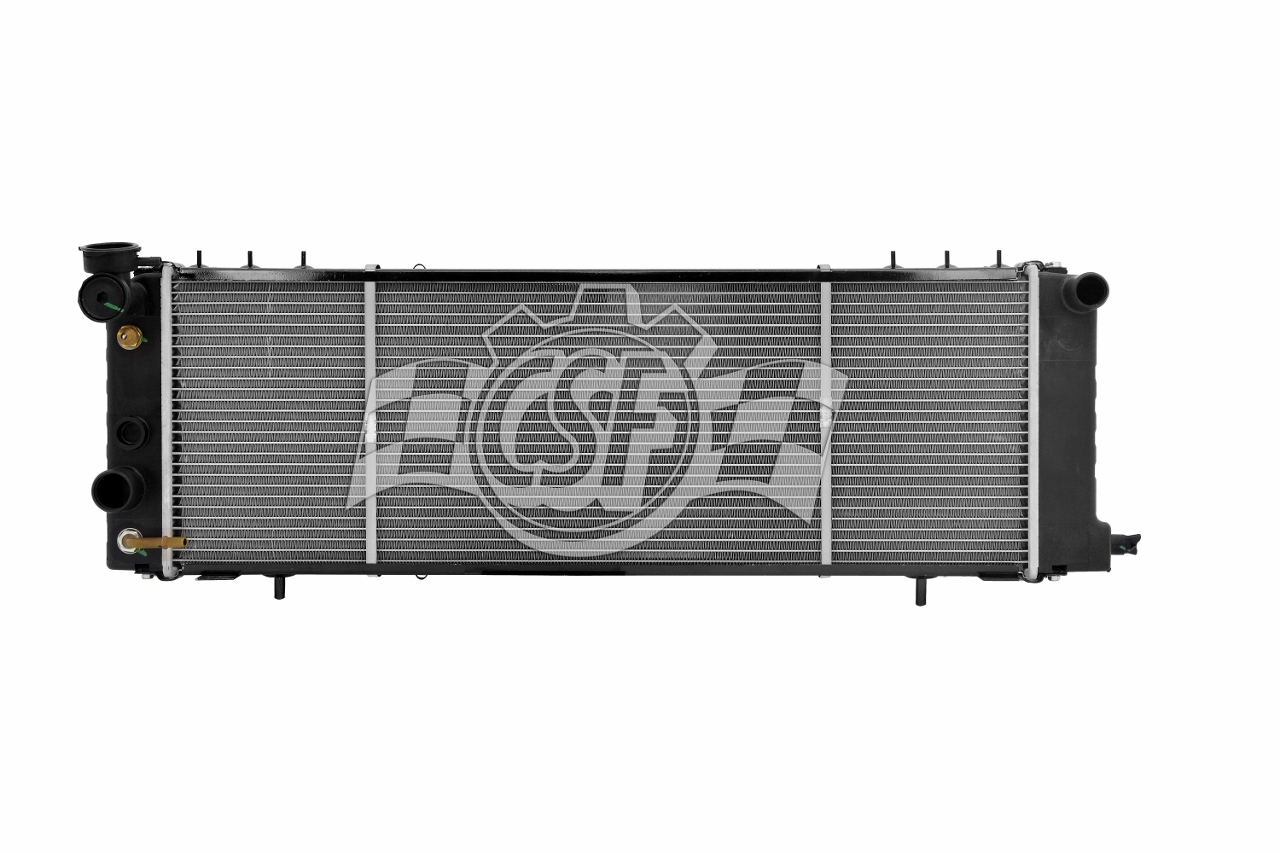

3251Radiator
1 Row Plastic Tank Aluminum Core

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120 Degrees F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left
Box Height (in): 8 1/16
Box Length (in): 39 5/16
Box Weight (lbs): 14
Box Width (in): 15 1/16

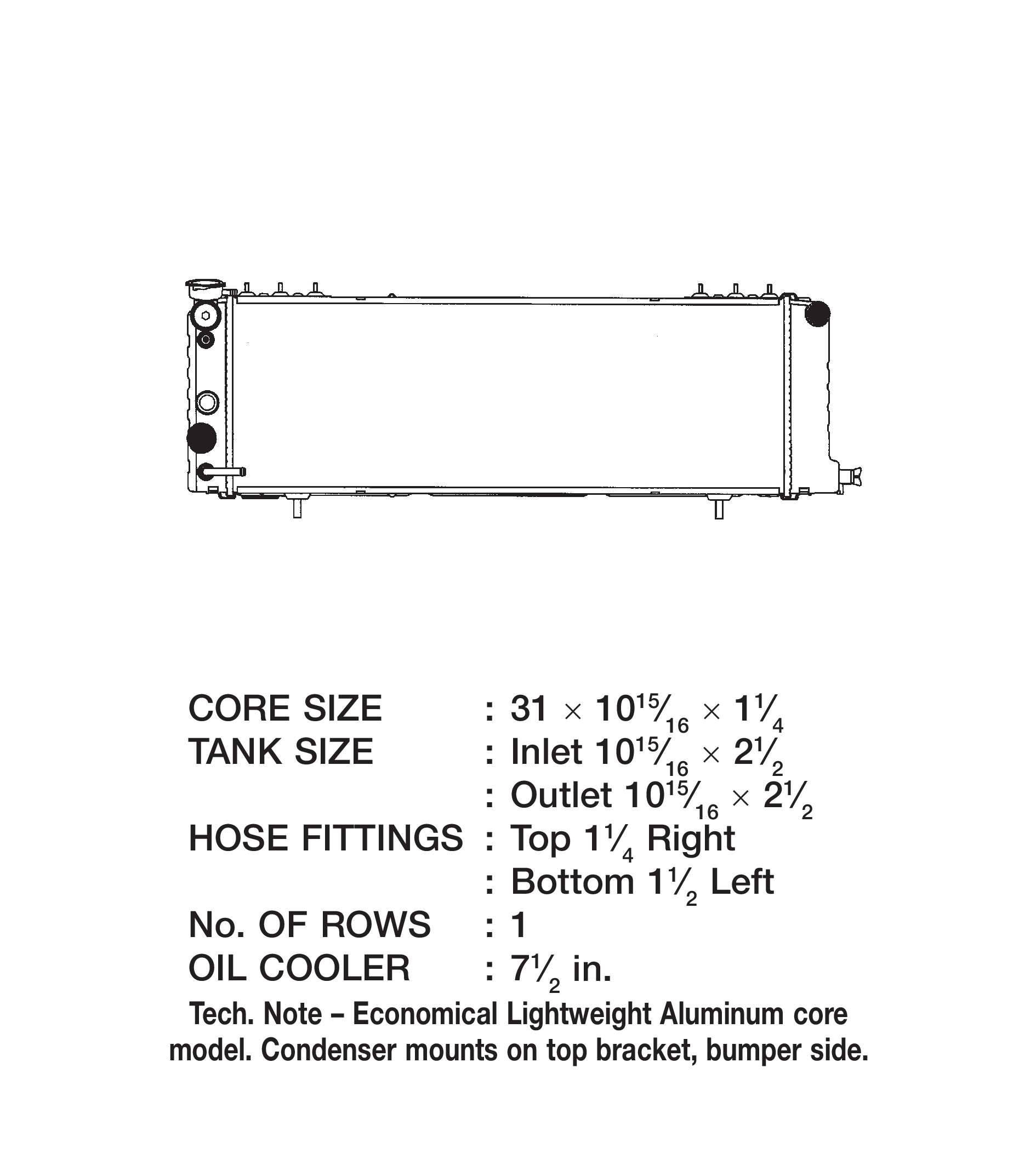

Core Length (in): 31
Core Material: Aluminum
Core Thickness (in): 1 1/4
Core Width (in): 10 15/16
Cross-flow/ Down-flow: Cross Flow
Csf Cap Number: 4515
Hazardous Material: No
Inlet Length (in): 10 15/16
Inlet Width (in): 2 7/16
No. Of Rows: 1
Oil Cooler (in): 7 1/2 (high-effeciency Concentric Type)
Outlet Length (in): 10 15/16
Outlet Width (in): 2 7/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: Economical Lightweight Aluminum core model; Condenser mounts on top bracket, bumper side.
Top Hose Fitting (in): 1 1/4 Right
Make Model Qualifiers Year
Jeep Cherokee
  • Position: N/A
  • 4.0L L6 242ci
  • XJ
 1991-2001
Jeep Cherokee
  • Position: N/A
  • 2.5L L4 150ci
  • XJ
 1998, 2000

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1193DPI
1193TYC
1592DPI
52004921OEM
52006341OEM
52028131OEM
52028134OEM
52030000OEM
52079682OEM
52079693OEM
52080104OEM
52080115OEM
53007135OEM
8011193APDI
895 2004 917OEM
895 2029 045OEM
CH3010183Partslink
CH3010184Partslink
CH3010186Partslink
CH3010187Partslink
CU1193SPI
