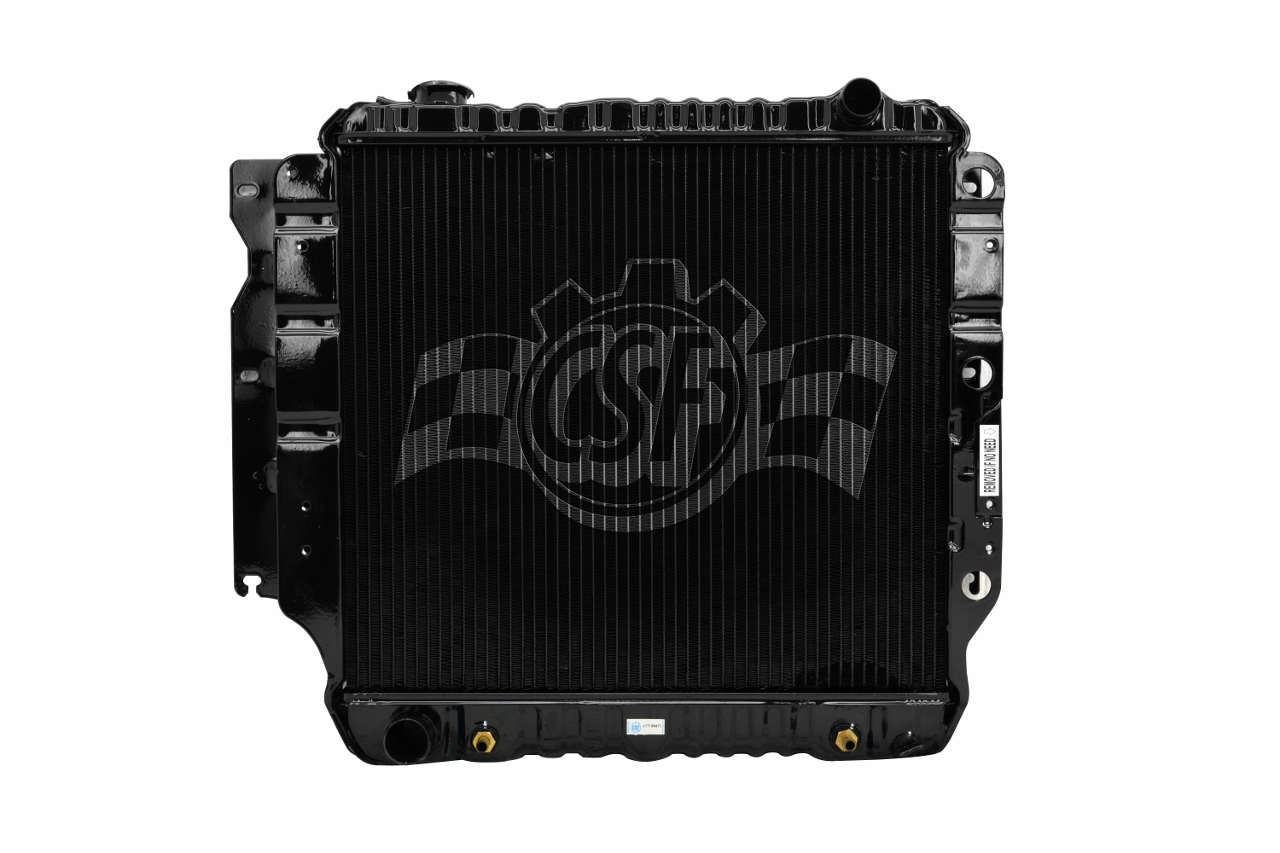

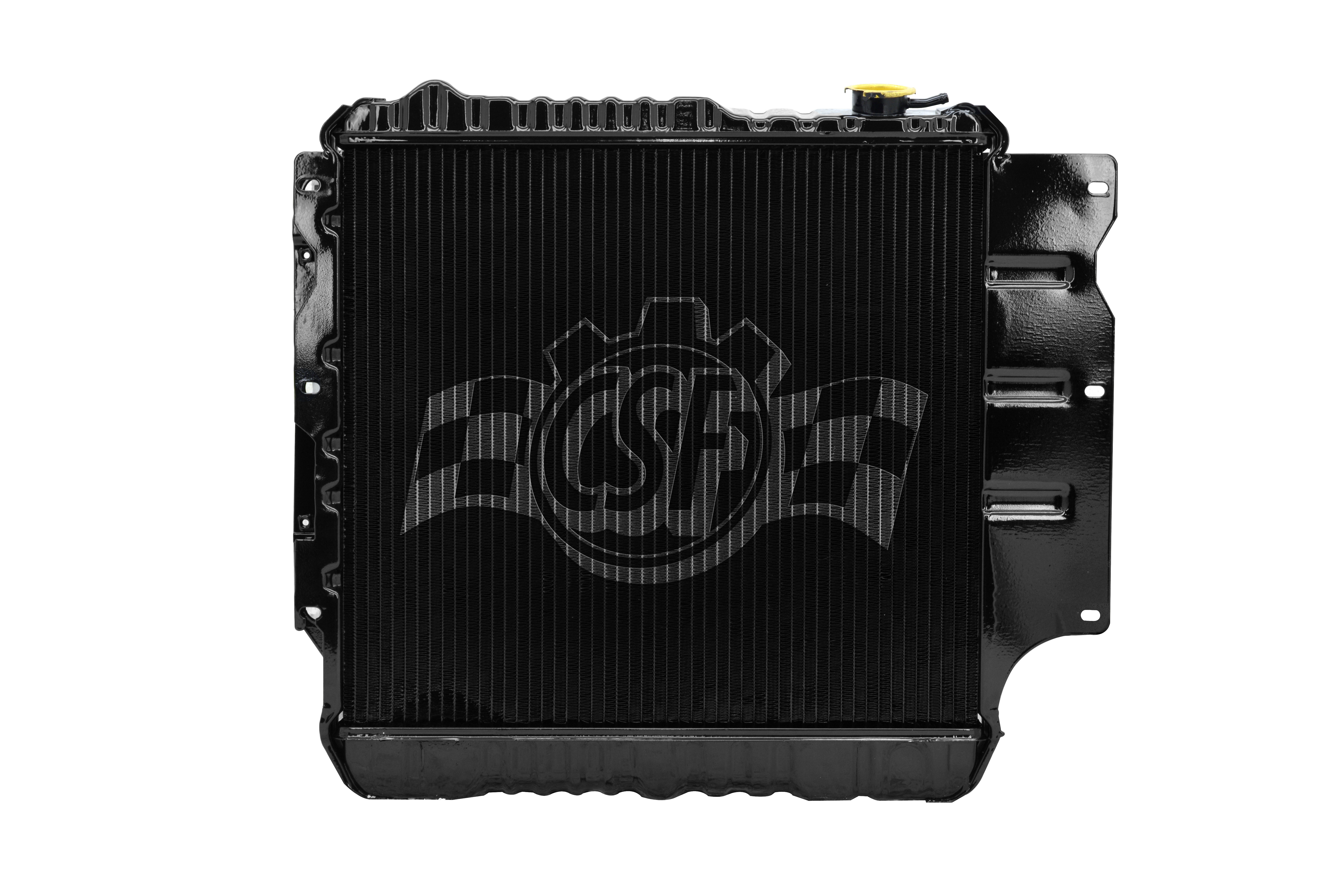

2576Radiator
2 Row All Metal

Radiator

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Copper-Brass Construction
  • Easy to recore & repair
  • No risk for coolant contamination and damage to sensitive seals, water pump & thermostat
  • OEM specified "Single Piece - Deep Drawn" Brass Tanks with Ribs for added Strength & Durability
  • Tubes - Special coated OEM specified "Double Lock Seam Joints" for Long Life
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • Side Channels - Coated Steel for Strength & Durability
  • Reinforced Inlet & Outlet Connections with "Thru Pipe Design"
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • Built for OEM Cooling - High Performance Transmission Cooler with special Built-in Turbulators
  • All components are installed, torqued & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 1/2 Left (in)
Box Height (in): 5 11/16
Box Length (in): 28 1/16
Box Weight (lbs): 19
Box Width (in): 25 5/16
Core Length (in): 18 1/8 (in)
Core Material: Copper
Core Thickness (in): 1 1/4 (in)
Core Width (in): 20 (in)
Cross-flow/ Down-flow: Down Flow
Csf Cap Number: 4501
Hazardous Material: No
Inlet Length (in): 20 1/16
Inlet Width (in): 2
No. Of Rows: 2
Oil Cooler (in): 12 (high-effeciency Concentric Type)
Outlet Length (in): 20 1/16
Outlet Width (in): 2
Radiator Cap Supplied: No
Tank Material: Brass

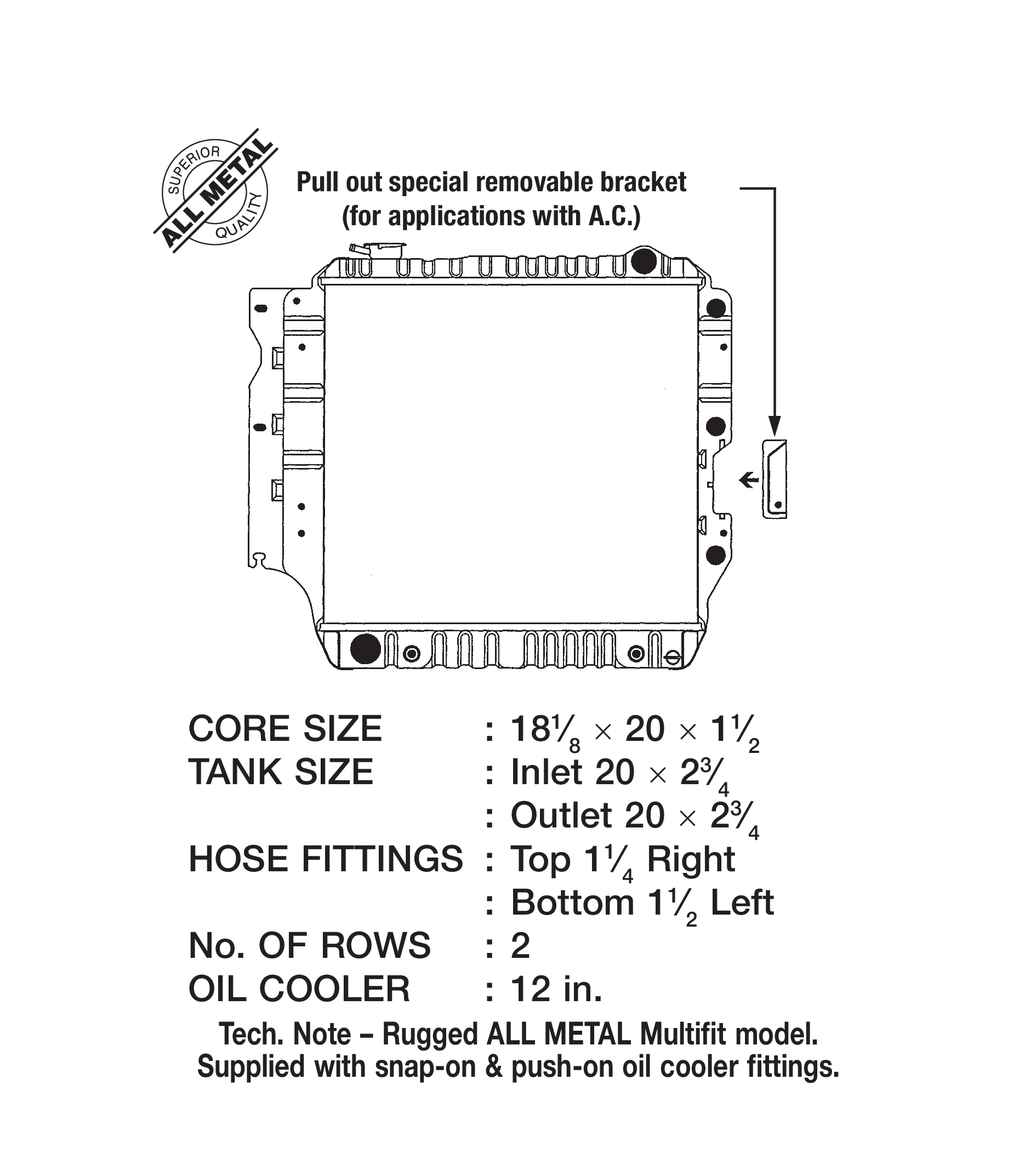

Tech Note: Rugged ALL METAL Multifit model; Supplied with snap-on & push-on oil cooler fittings; Removable bracket for applications with A/C.
Top Hose Fitting (in): 1 1/4 Right (in)
Make Model Qualifiers Year
Jeep Wrangler
  • Position: N/A
  • 2.5L L4 150ci
 1987-1995, 1997-2002
Jeep Wrangler
  • Position: N/A
  • 4.0L L6 242ci
 1991-1995, 1997-2002

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
1015DPI
1682DPI
2101DPI
2102DPI
2102TYC
2760DPI
52004781OEM
52006122OEM
52006123OEM
52006124OEM
52006125OEM
52006126OEM
52007227OEM
52007228OEM
52028112OEM
52028114OEM
52028120OEM
52028123OEM
52029113OEM
52029160OEM
52040229OEM
52040285OEM
52040286OEM
52040287OEM
52040288OEM
52079598 (HD)OEM
52080180OEM
52080181OEM
52080183 ABOEM
8011015APDI
8011682APDI
8012101APDI
8952040229OEM
8952040285OEM
8952040286OEM
8952040287OEM
8952040288OEM
CH3010211Partslink
CH3010213Partslink
CH3010215Partslink
CH3010219Partslink
CH3010220Partslink
CH3010221Partslink
CH3010224Partslink
CH3010225Partslink
CU1015SPI
CU2101SPI
