Vehicle Fitment Finder

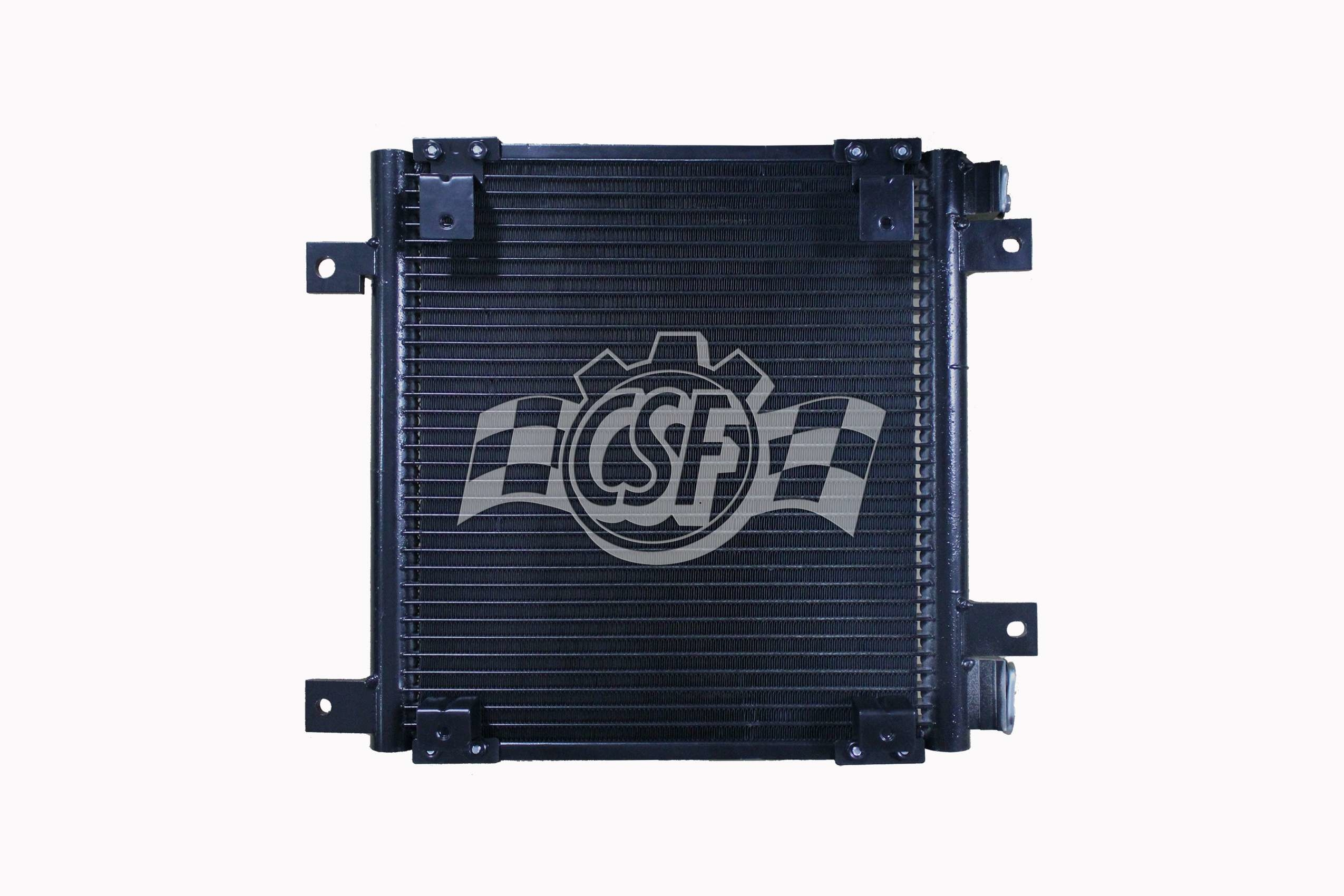

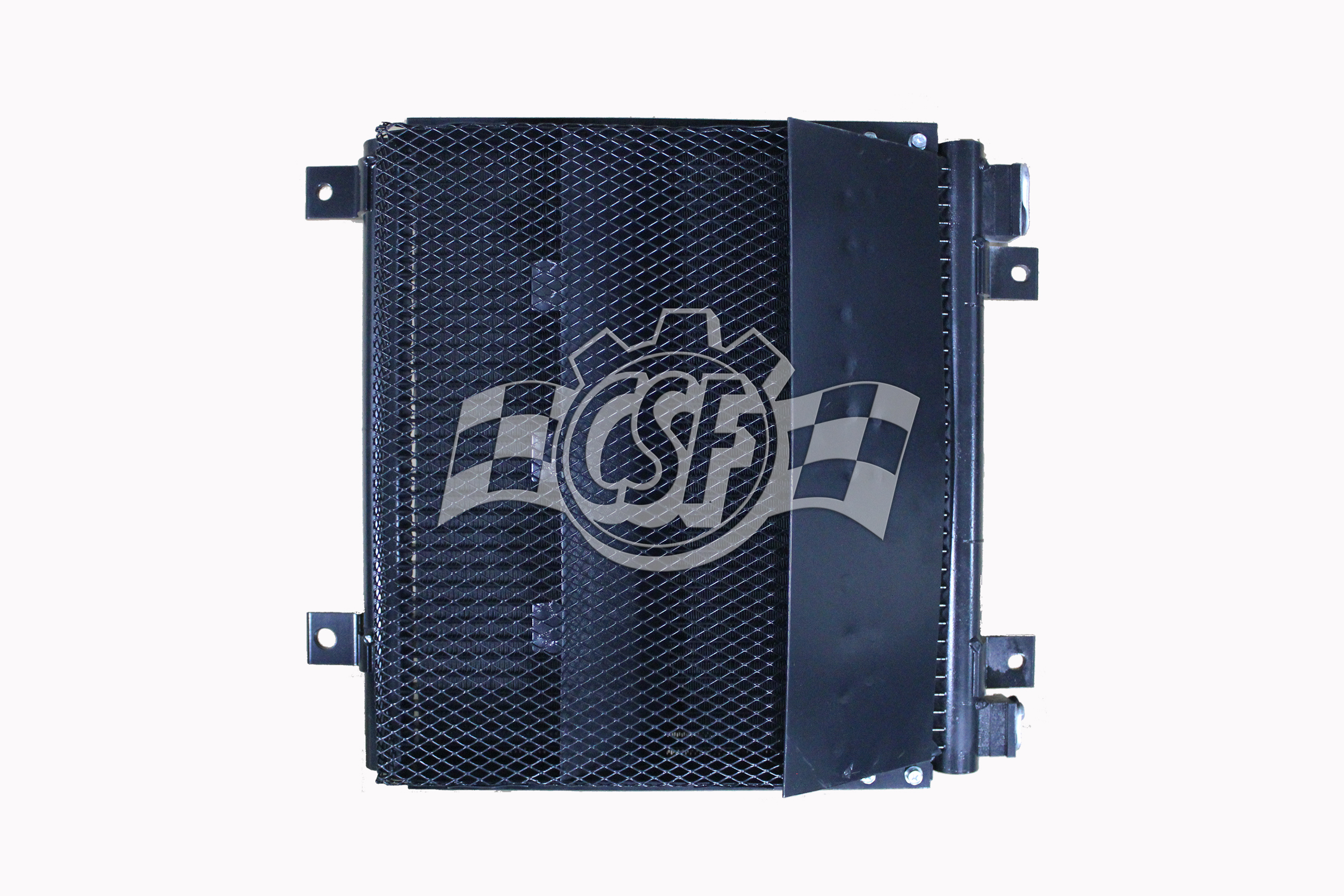

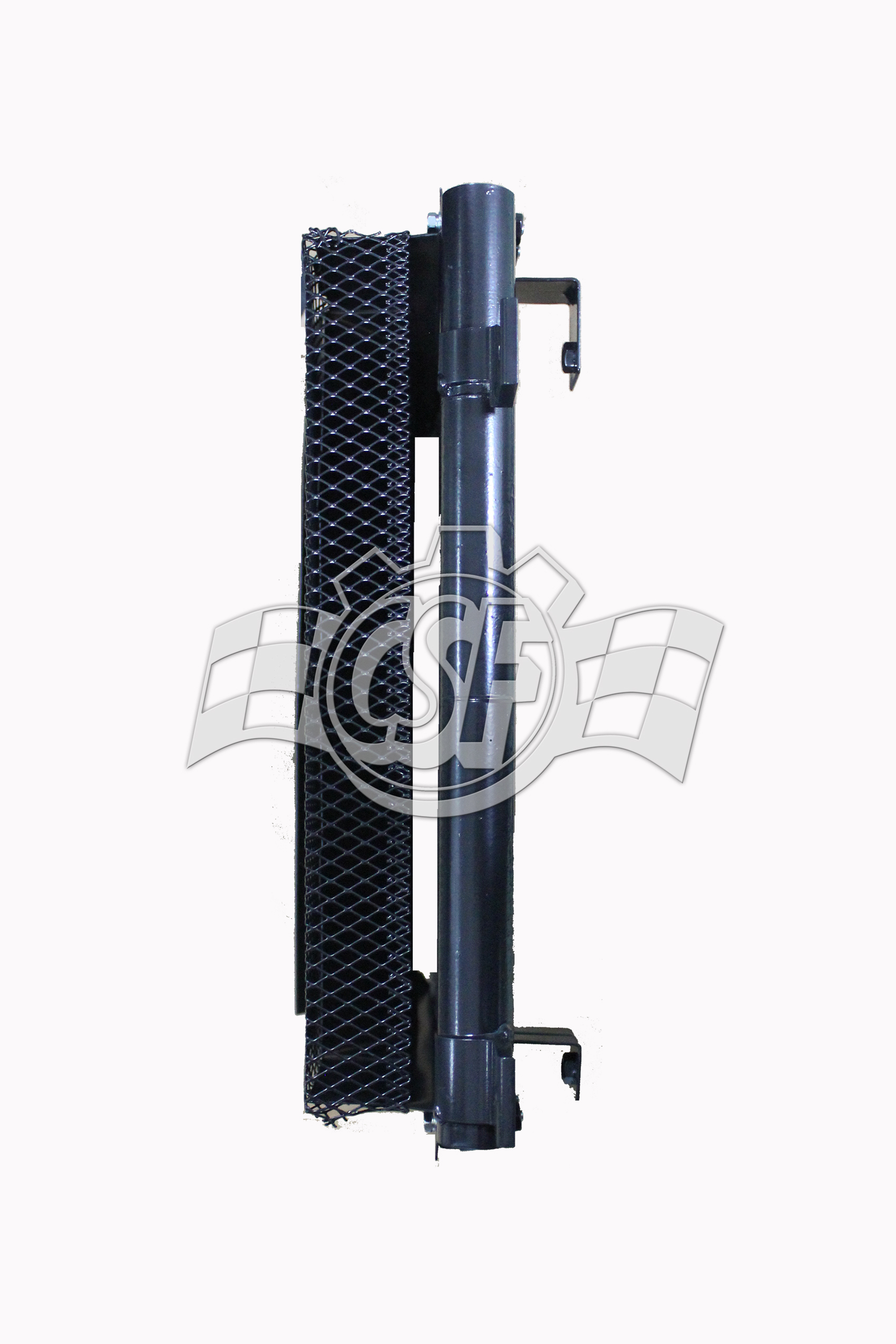

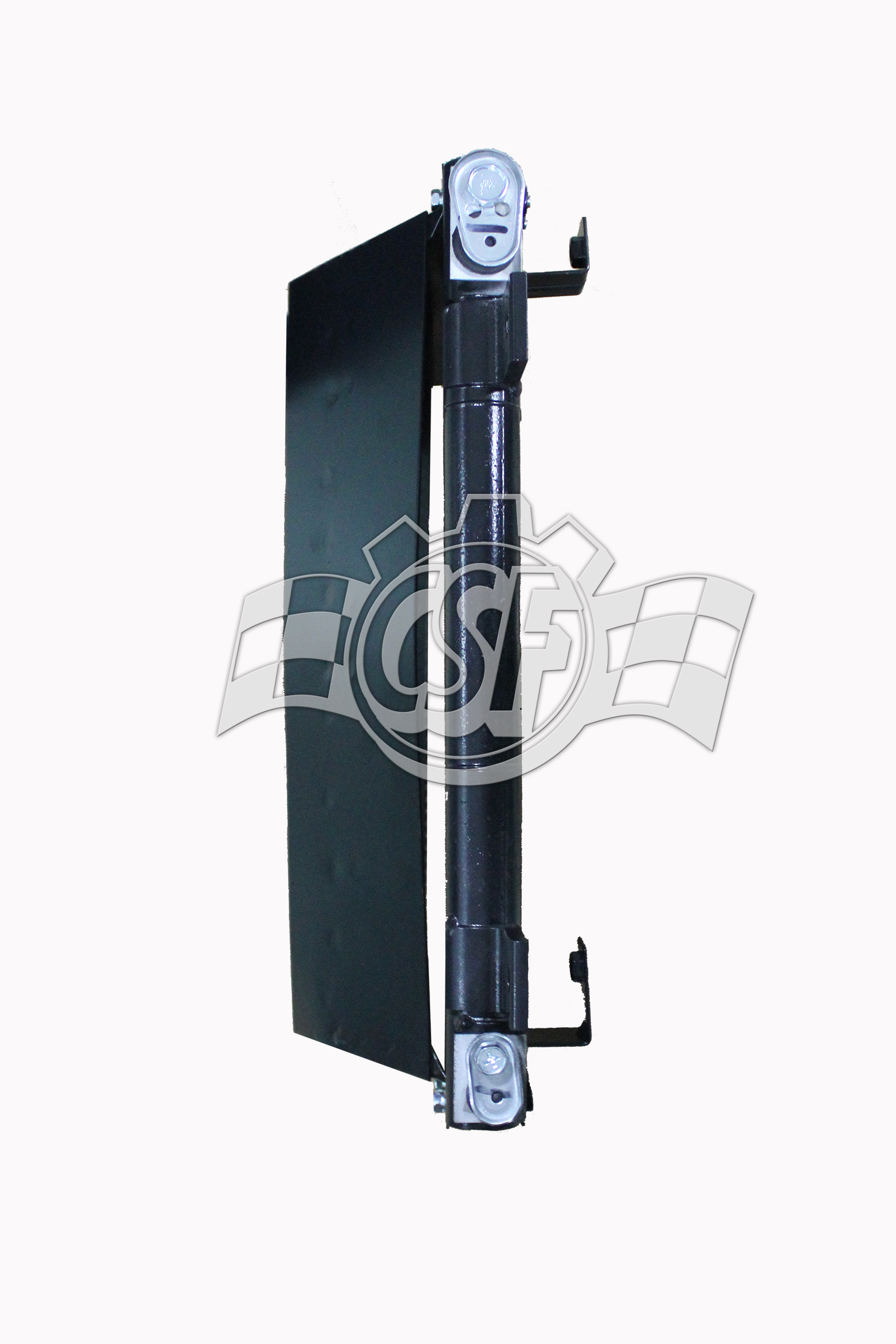

10648A/C Condenser
Aluminum Parallel Flow

A/C Condenser

Over 30 million units sold;ISO/TSO certified factories;Best packaging in the Industry
Box Height (in): 18 1/3
Box Length (in): 22
Box Weight (lbs): 9 7/9
Box Width (in): 7
Construction: parallel flow

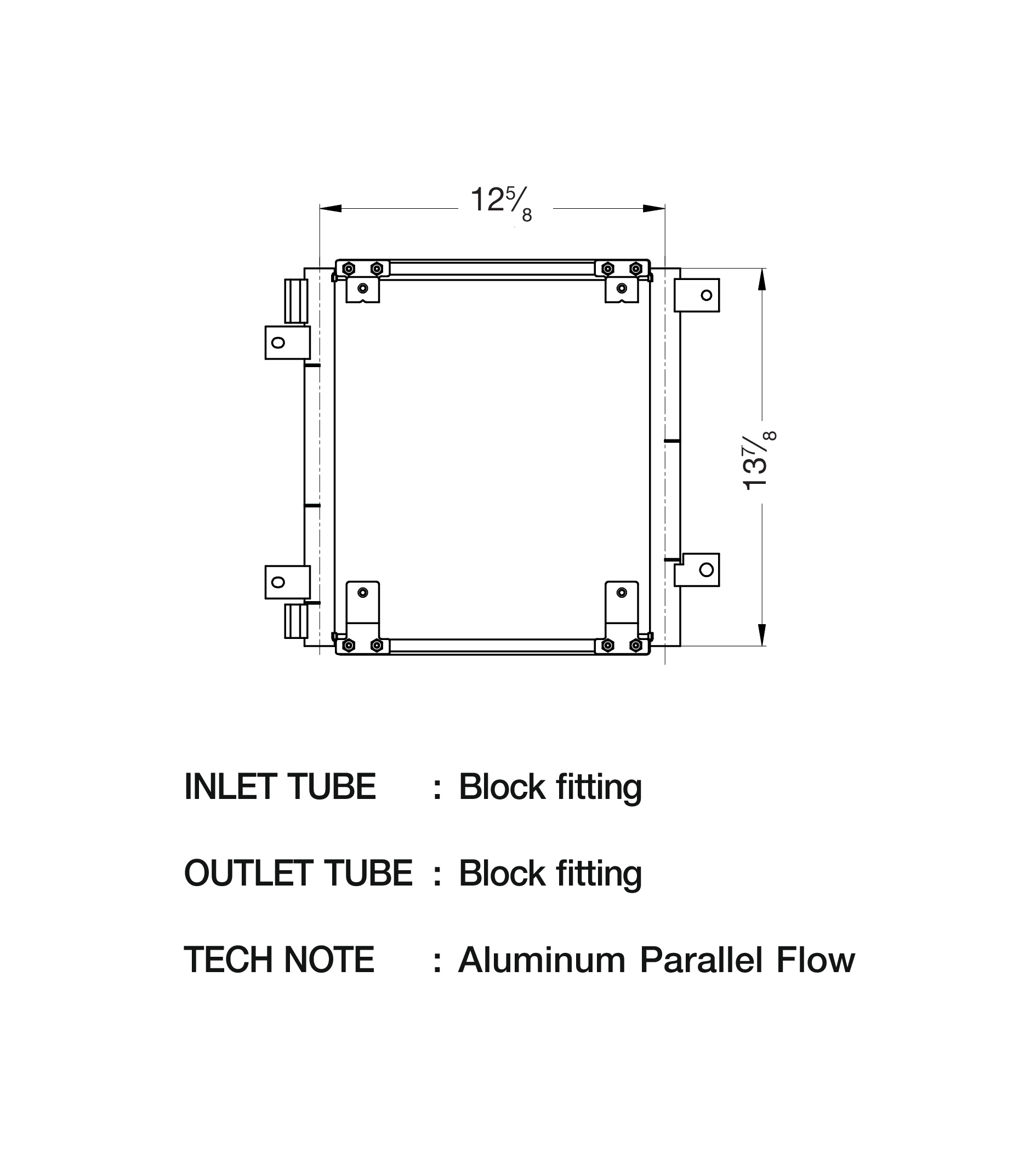

Core Length (in): 12 3/5
Core Thickness (in): 6/7
Core Width (in): 13 7/9
Hazardous Material: No
Inlet Tube: Block Fitting
Outlet Tube: Block Fitting
Make Model Qualifiers Year
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2004-2007
Chevrolet W3500 Tiltmaster
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2007
Chevrolet W4500 Tiltmaster
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Chevrolet W5500 Tiltmaster
  • Position: N/A
  • 4.8L L4 290ci
 2000-2004
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Chevrolet W5500HD Tiltmaster
  • Position: N/A
  • 4.8L L4 290ci
 2004
GMC W3500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
GMC W3500 Forward
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2004-2007
GMC W3500 Forward
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
GMC W4500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
GMC W4500 Forward
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2007
GMC W4500 Forward
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
GMC W5500 Forward
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
GMC W5500 Forward
  • Position: N/A
  • 4.8L L4 290ci
 2000-2004
GMC W5500HD Forward
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
GMC W5500HD Forward
  • Position: N/A
  • 4.8L L4 290ci
 2004
Isuzu NPR
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Isuzu NPR
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2007
Isuzu NPR
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
Isuzu NPR-HD
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004
Isuzu NPR-HD
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Isuzu NPR-HD
  • Position: N/A
  • 6.0L V8 5967cc 364ci
 2003-2007
Isuzu NQR
  • Position: N/A
  • 5.2L L4 317ci
 2005-2007
Isuzu NQR
  • Position: N/A
  • 4.8L L4 290ci
 1999-2004

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference NumberReference Name
7-9060SPI
8972618242OEM
97261824OEM
972618242OEM
